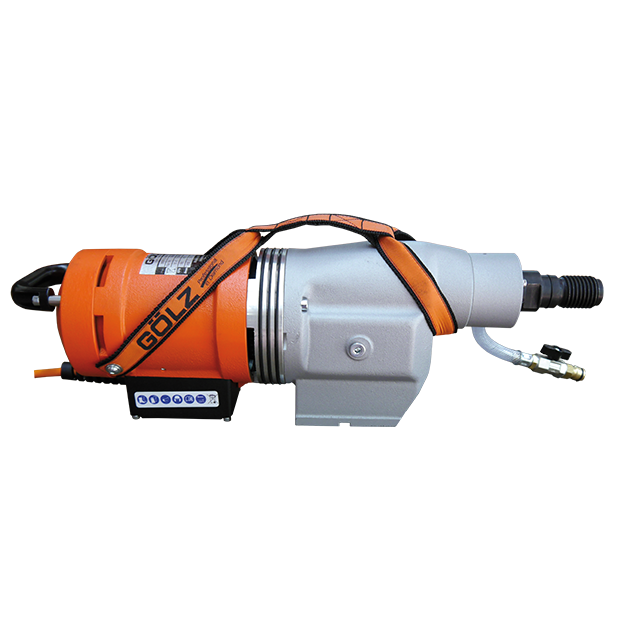

RD300 | BBM33L-extra
lightweight and professional core drilling machine for holes up to Ø 400 mm (16") in building and construciton industry
-
Max. Drill-Ø300 mm
-
Travel Length650 mm
-
Base3-point anchor base
-
Motor3-speed, 3,3 kW, 230 V
ltem number: BBM33L-extra 0295 250 6030 / RD300 0295 250 6100
-
FEATURES

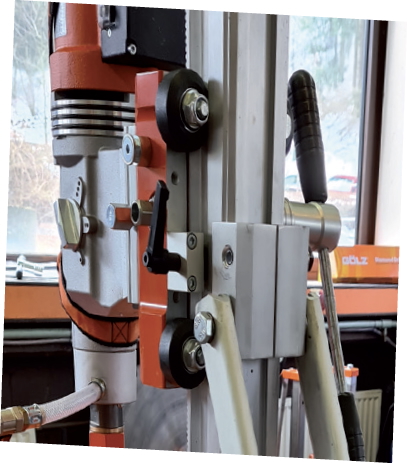

![Professional roller guide]()
Professional roller guide![Robust back column]()

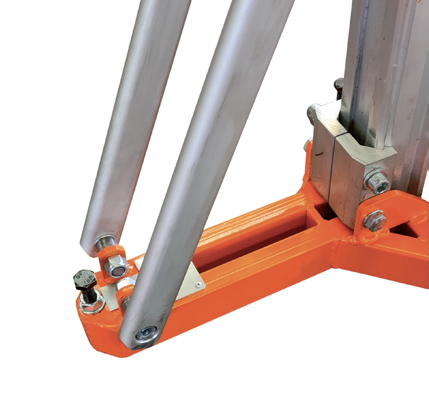

Robust back column -
TECH DATA TABLE
Aluminum drilling machine with professional 3,3 kW motor and roller guide carriage
• Light metall Drill Stand 16 kg (35 lbs)
• Travel length: 650 mm (25")
• Maximum diameter: 400 mm (16")
• Angle drilling device up to 45°
• Roller guide carriage
• Left and right handed operation
• Motor quick release system
• Anchor base
• Tool- and fastening kit included

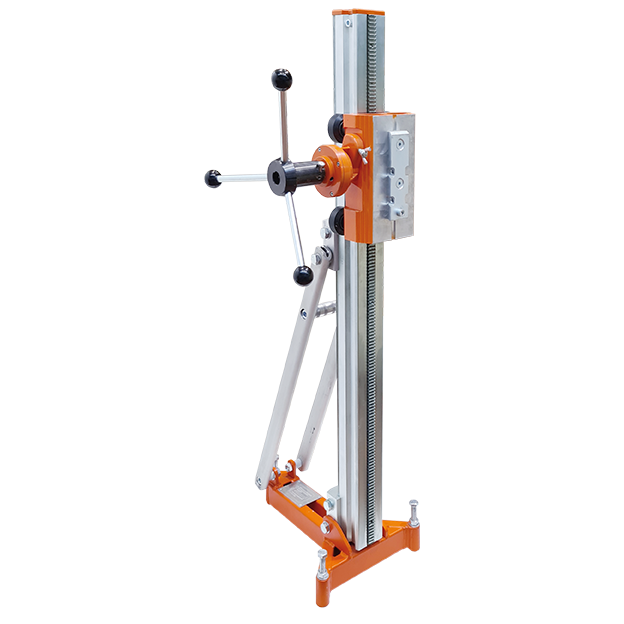

RD300 with anchor-/vacuum base Drill bit connection 1¼” UNC Complete with BBM33L-extra Power 3300 W, 230 V, 50-60 Hz RPM 180/430/750 min-1 Drilling Diameter Ø 45-400 mm Order number 0295 250 6030 Drill Stand RD300 without drill motor with tool kit (without fastening kit),
anchor base, planetary gear, Weight 16 kg, up to Ø 300 mm (12")
Order number 0295 250 6100 -
Matching machines
-

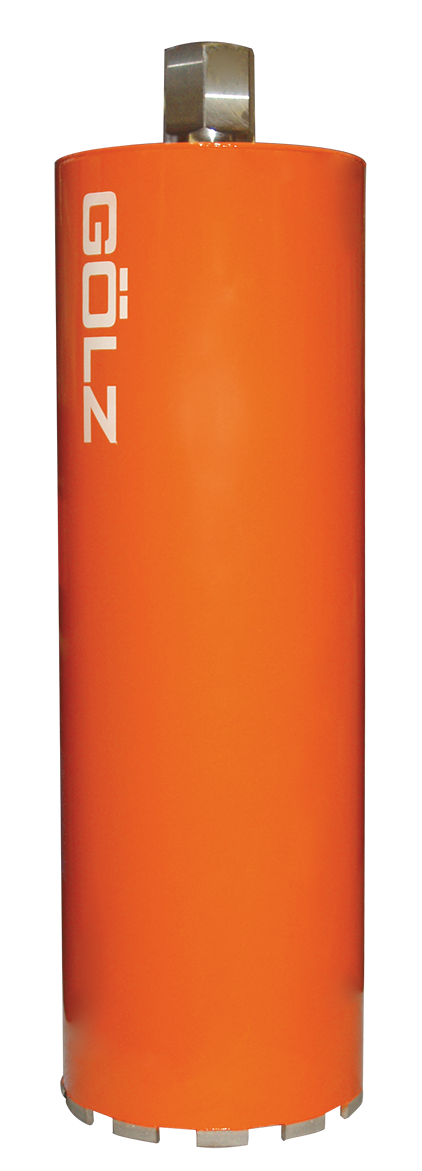

Diamond ToolsSuitable diamond tools – our recommendations
-
